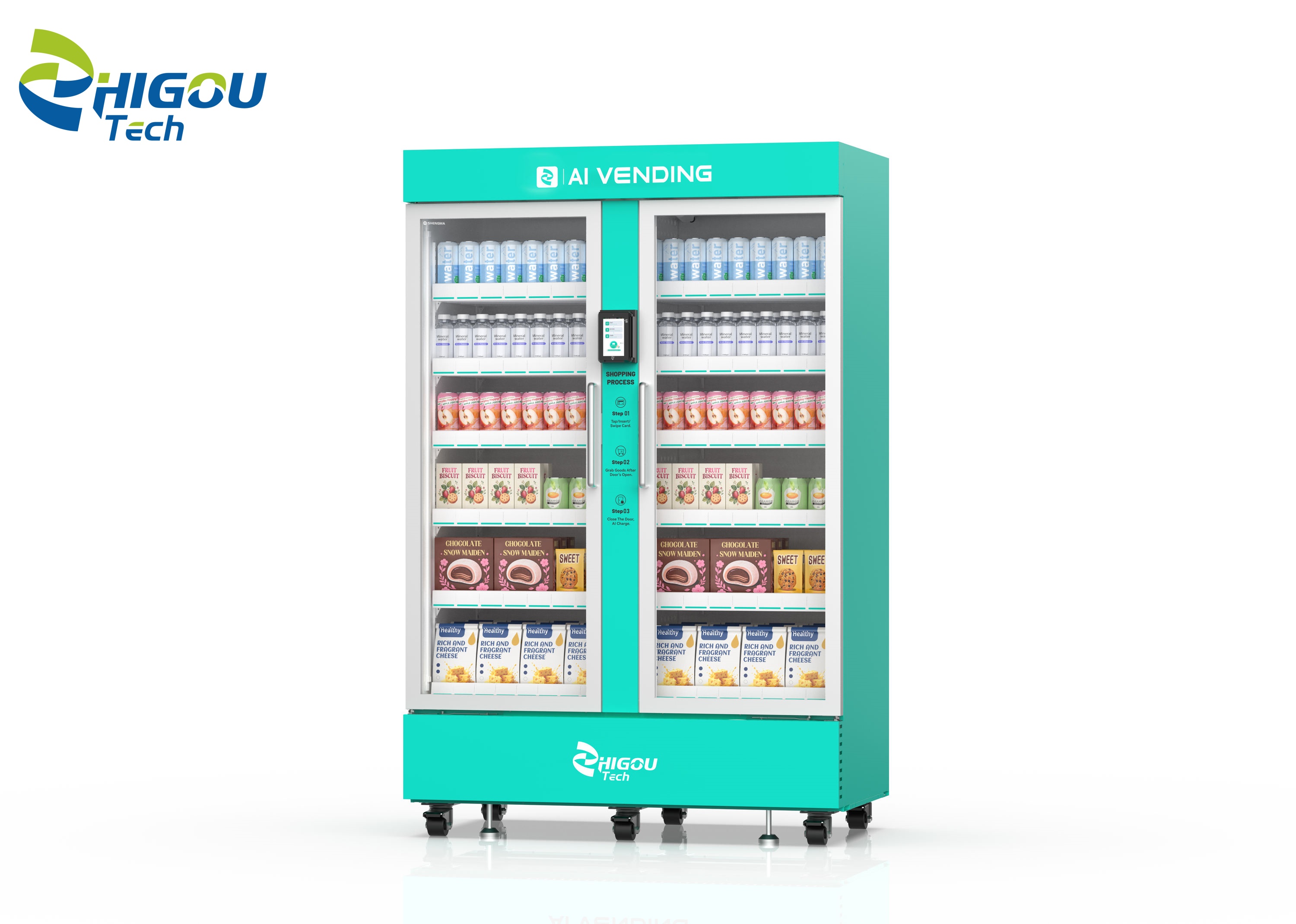

The ZG-AI-1130 single-system AI visual opening vending machine is a large-capacity commercial unmanned self-service retail device launched by Zhiguang Technology. The entire machine has a volume of up to 1130L, capable of accommodating 768 standard beverages. It features a 6-layer dual-side shelf layout, providing sufficient stocking capacity and wide adaptability for product categories. The machine supports card payment and comes in classic black and Tiffany blue colors. It also supports personalized color customization. The device has a complete set of international authoritative export certifications. The whole machine is guaranteed for one year, with stable quality and a low failure rate. It is suitable for various commercial unmanned self-service retail scenarios and is a cost-effective, large-capacity intelligent self-service solution.

Why Choose the 1130L AI Vision Vending Machine with Single System?

- Extra-large storage capacity, strong distribution capability: The entire machine has a 1130L large-capacity cabinet, and the standard version can store 768 bottles of beverages. Combined with 6 layers of dual-sided tiered shelves, the space utilization rate is extremely high. There is no need for frequent restocking, which perfectly suits high-traffic commercial scenarios and significantly reduces the frequency of manual operation and maintenance.

- Forced-air cooling for refrigeration, uniform and stable temperature control: The use of forced-air cooling for heat dissipation ensures uniform air circulation inside the cabinet, avoiding local temperature differences. It can effectively preserve various refrigerated products such as beverages, fresh milk, and snacks for a long time, ensuring better product quality.

- Single-system minimalist design, extremely high cost-effectiveness: Using a central electric control lock single-system control, the overall structure is streamlined, with a low hardware failure rate. The operation is simple, and the cost is lower. It combines large-capacity sales with stable performance, suitable for mass deployment in popular commercial scenarios.

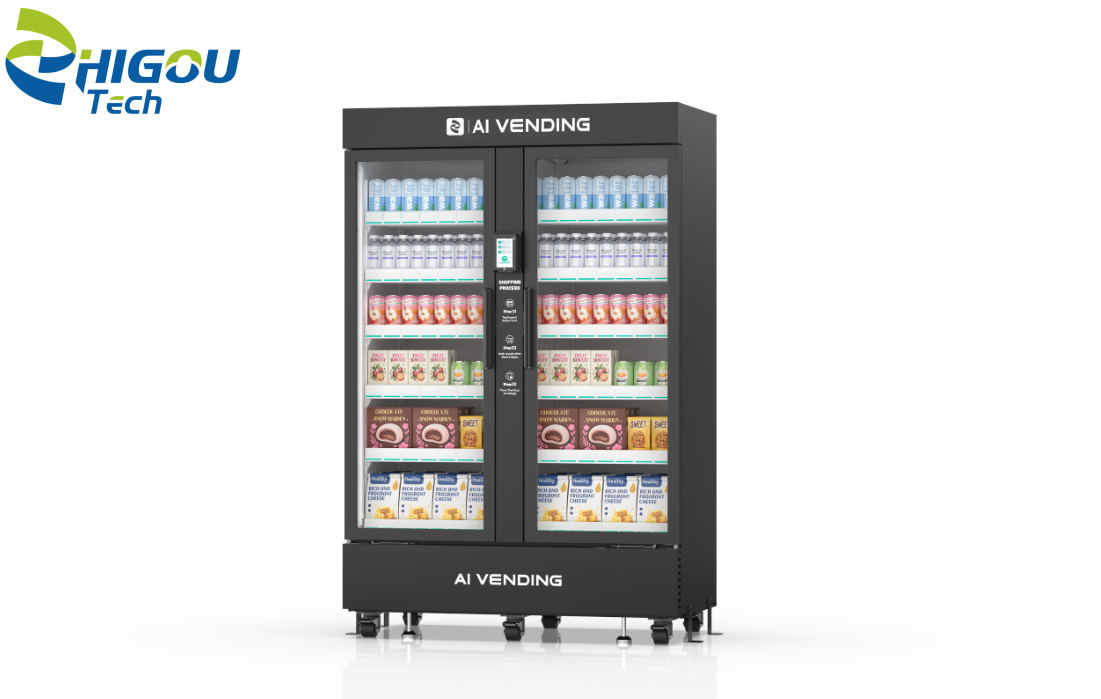

- Customizable appearance, adaptable to various scenarios: Standard colors include black and Tiffany Blue. The entire machine color can be personalized. It can fit the decoration style of the venue and the brand visual image and is suitable for various high-end commercial scenarios.

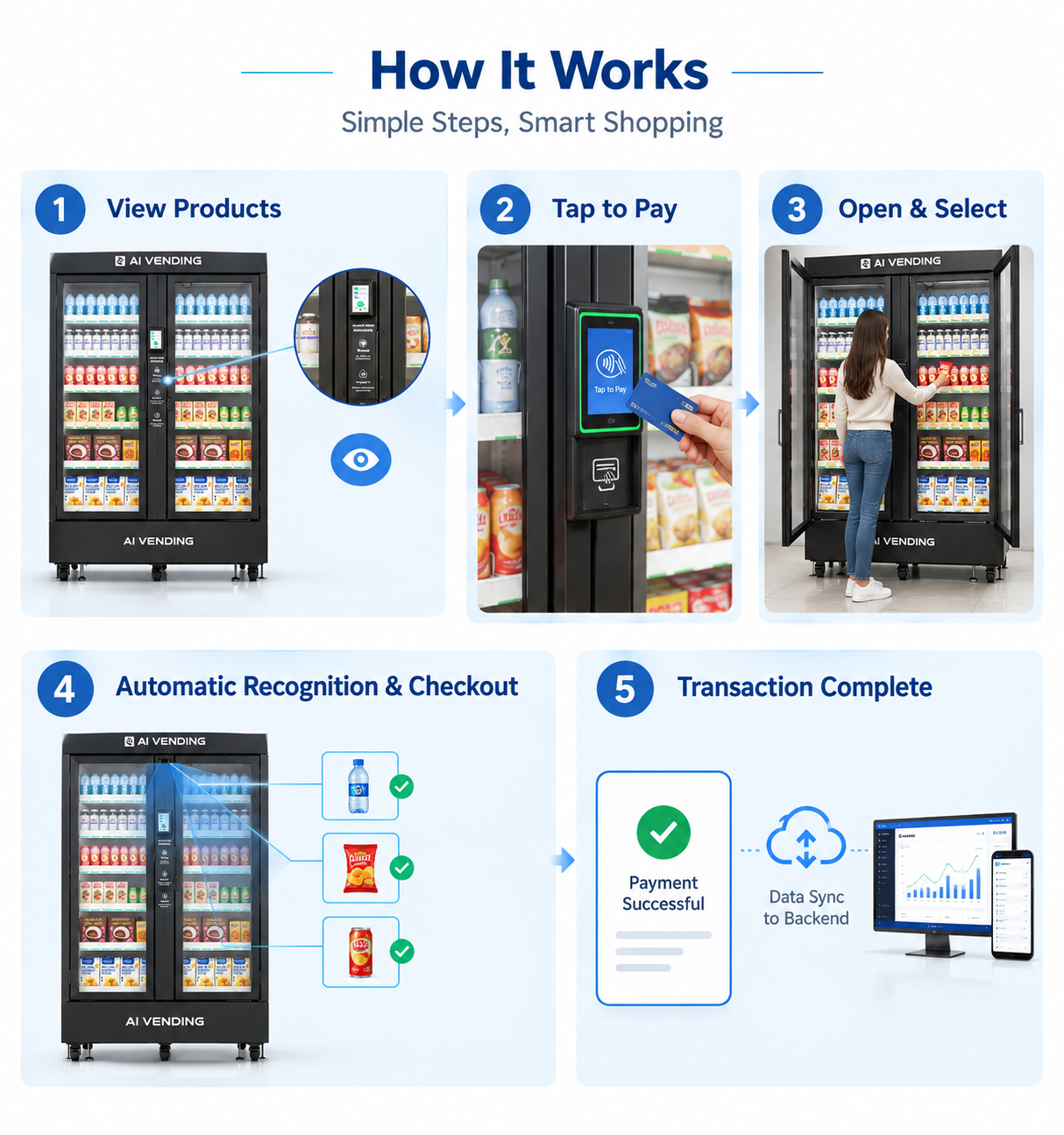

How work?

This vending machine features a single-system centralized control mechanism and operates fully unattended on a self-service basis, offering simple operation and stable performance:

1. The machine is equipped with a centralized electronic lock in the middle that uniformly controls both cabinet doors via a single system. Before reaching the machine, users can directly view the snacks, beverages, and pre-packaged goods displayed inside the cabinet;

2. Payment is made by swiping a card at the built-in card reader; once the system verifies the payment, both cabinet doors automatically unlock;

3. Users can freely open the doors to enter the “store,” select multiple desired items at once, and take whatever they wish without any restrictions on the number of items purchased;

4. Once shopping is complete, users close the cabinet doors, and the machine’s AI vision system automatically identifies all items taken, automatically completing an accurate checkout;

5. The entire transaction is automatically recorded, and data is synchronized to the backend without the need for manual intervention, completing a full self-service sales process.

1130L AI Vision Vending Machine with Single System vs 1130L AI Vision Vending Machine with Dual System

Both models feature the same 1130L large-capacity cabinet; the key differences lie in their control systems and payment/access control configurations.

✅ **Dual-System Version**: Equipped with **2 independent full-screen card readers**, the left and right cabinet doors support independent control. The two doors can be authorized and settled separately, allowing multiple people to use the left and right doors simultaneously. The left and right sections can also be configured to hold different product categories or price points, making it suitable for high-traffic locations and multi-category operations.

✅ **Single-System Version**: Equipped with only **one central card reader** that controls both doors. A single payment unlocks all cabinet doors, and each transaction supports shopping by only one person at a time. With a simpler system structure and lower hardware costs, this version is suitable for locations with moderate foot traffic and scenarios involving the sale of a single product category.

Application

With its ultra-large capacity, stable cooling, minimal maintenance, and stylish commercial design, it is widely suitable for various indoor commercial unmanned retail scenarios, including high-end office buildings, corporate factory campuses, hotel apartments, business clubs, tourist attractions and venues, campuses, hospitals, service areas in large supermarkets, and transportation hubs. It supports 24-hour unmanned, uninterrupted operations, providing venues with a stable source of passive income.

FAQ:

Q: Can the NAYAX card reader be installed on this ZG-AI-1130 single-system display cabinet?

A: The NAYAX card reader is available as an optional accessory; if you choose the NAYAX card reader, it must be used in conjunction with a Yuxian 10.1-inch display.

Q: What is the door configuration?

A: The unit is equipped with double-pane, electrically heated glass doors. The double-pane structure provides excellent thermal insulation, and the electrically heated defogging function effectively prevents the glass from fogging up. This ensures clear display of the products inside, offers superior temperature retention, and minimizes cold air loss.

Q: What type of door lock is used on the single-system cabinet?

A: It uses a centrally mounted electronic lock. The single system uniformly controls both doors, unlocking both cabinet doors simultaneously upon successful payment verification.

Q: How do I choose between a single-system and dual-system 1130L AI vending machine?

A: For high-traffic locations where different products need to be sold in separate left and right compartments, we recommend the dual-system; for locations with average foot traffic selling a uniform product line and seeking cost efficiency, choose the single-system.

Q: What certificates does the machine have?

A: It is certified with ISO 9001, CE, RoHS, LVD, Machinery Directive (MD) and FCC for global export.

Q: What is the warranty period?

A: 1-year warranty for the whole machine.
